Small Hole EDM Drilling
EDM electrode tubes are used for small hole drilling in hard metals and precision workpieces. They help produce accurate starter holes, cooling holes, vent holes, and deep micro holes where conventional drilling is difficult.

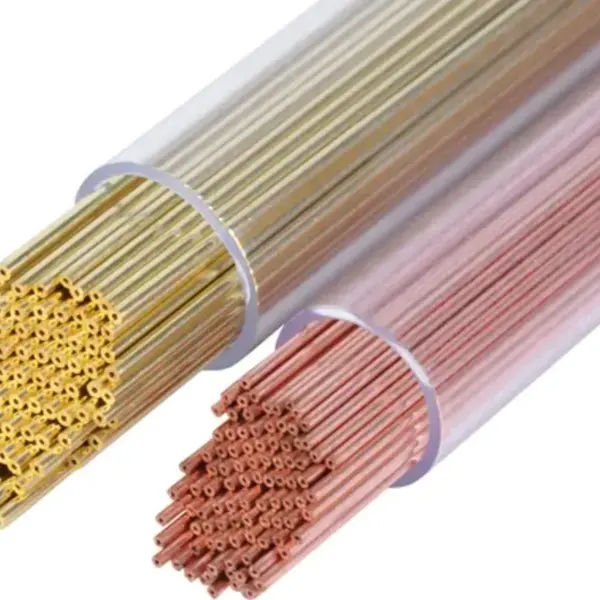

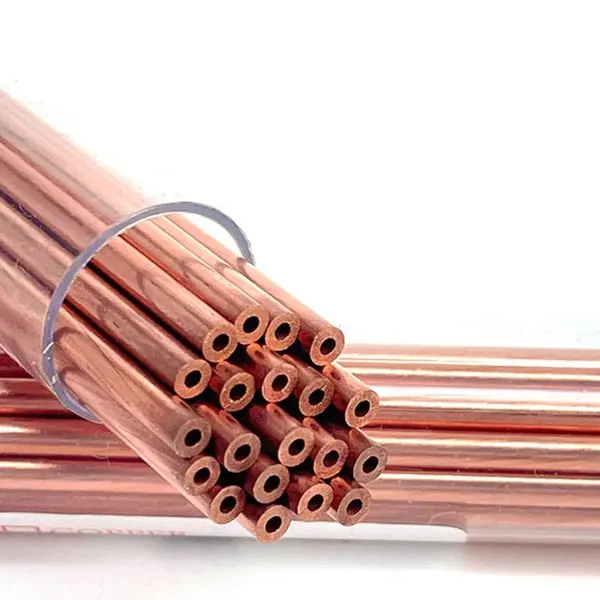

EDM Electrode Tube
SST Capillary supplies precision EDM electrode tubes for small hole drilling and electrical discharge machining applications. Our electrode tubes feature excellent electrical conductivity, stable dimensional accuracy, and smooth internal flushing performance, helping customers achieve efficient and precise machining results.
Request a Quote
Available in different sizes, lengths, and hole types, they are suitable for mold making, aerospace components, automotive parts, medical devices, and other precision industries.

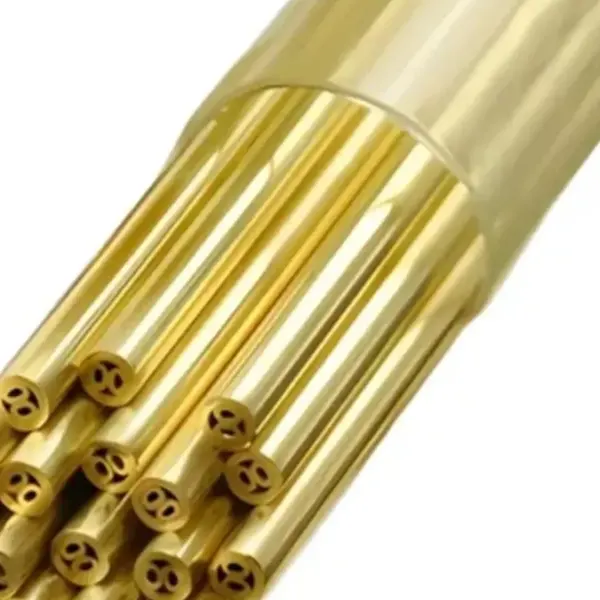

| Material | Brass, Copper |
|---|---|
| OD | 0.1~6.0mm |
| Length | 180mm, 200mm, 300mm, 400mm, 500mm, 600mm |

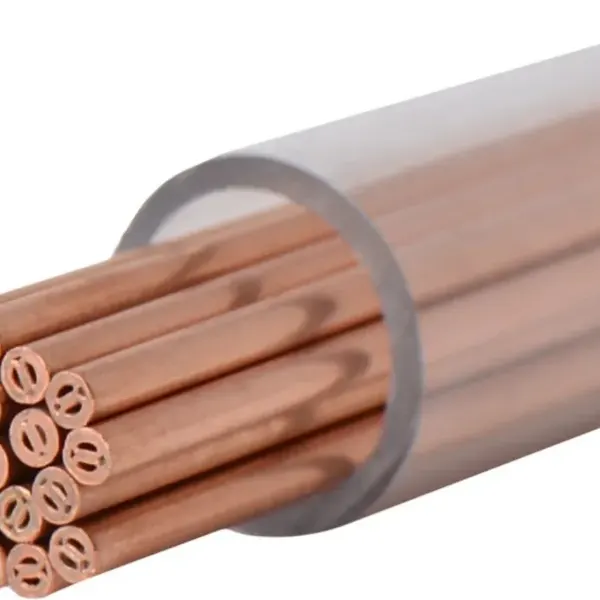

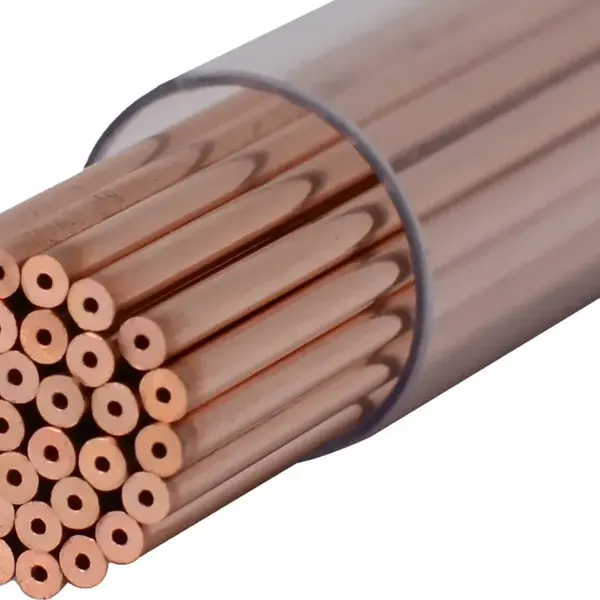

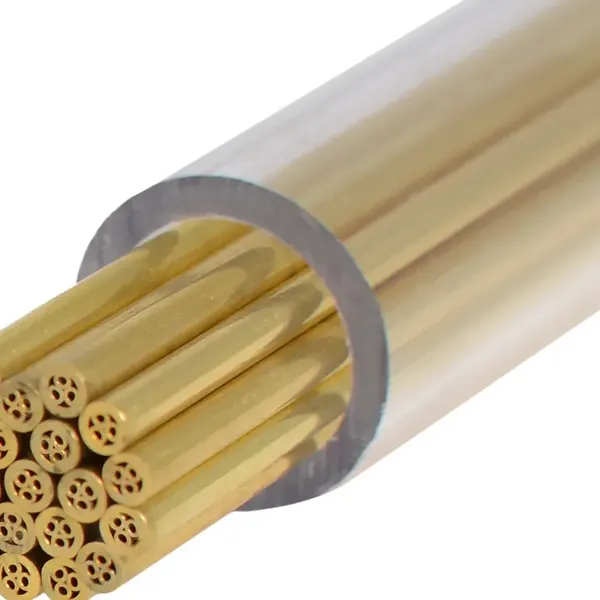

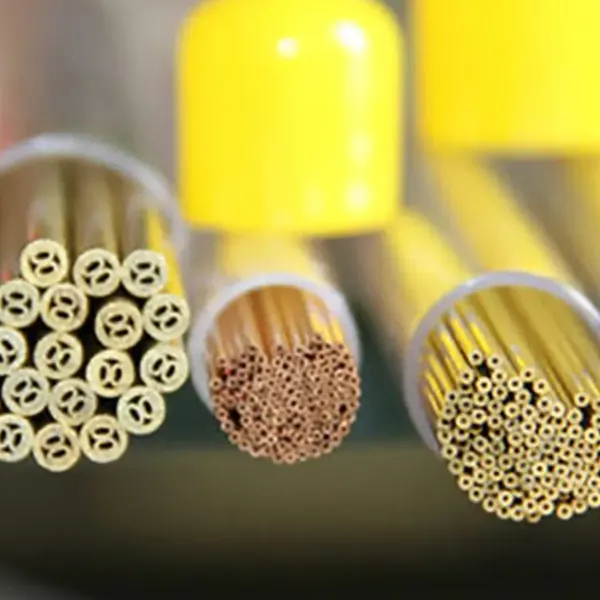

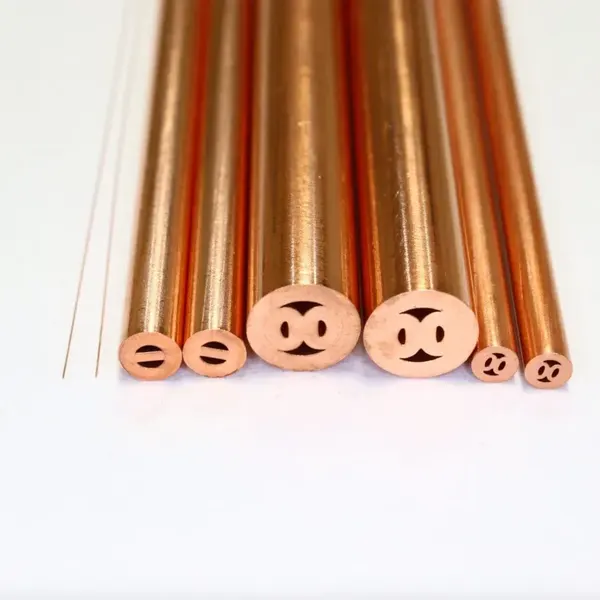

| Tube Type | Single-hole, Dual-hole, Multi-hole |
| Surface | Smooth surface for stable feeding and electrical discharge |
Mould & Tooling Manufacturing
Copper and brass electrode tubes are widely used in mould and die production, including wire-cut starter holes, ejector pin holes, cooling channels, and precision auxiliary holes.
Aerospace & Automotive Components
EDM drilling tubes support precision hole machining in components that require stable discharge, controlled flushing, and consistent hole quality, especially for hard or difficult-to-machine materials.
Medical, Instrument & Precision Parts
For small-diameter precision holes, EDM electrode tubes can be used in instrument parts, medical device components, and other high-precision metal parts requiring clean and repeatable hole machining.
Dimensional Inspection
Outer diameter and length can be checked before shipment to support stable feeding and machining performance during EDM drilling.
Channel Consistency
Single-hole and multi-channel structures are inspected to help maintain smooth flushing, chip removal, and consistent electrical discharge during machining.
Surface & Straightness Control
The tube surface and straightness are controlled to reduce feeding instability and support reliable performance on EDM drilling machines.

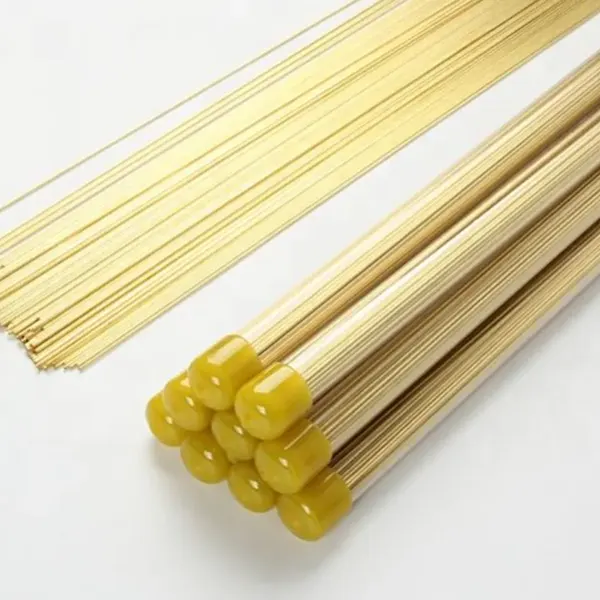

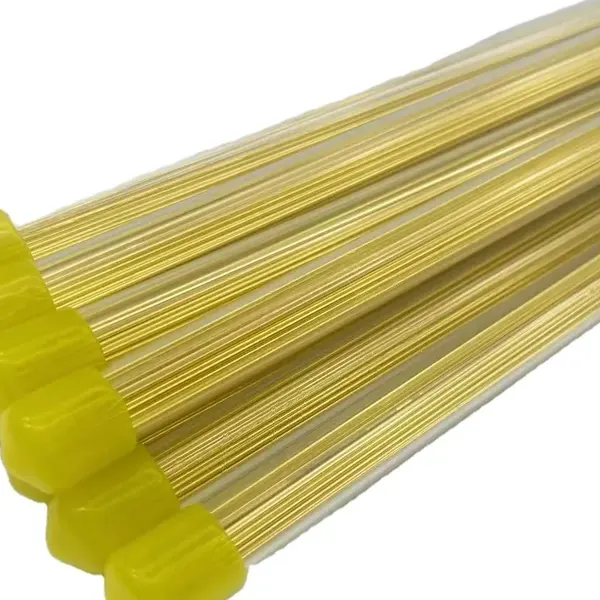

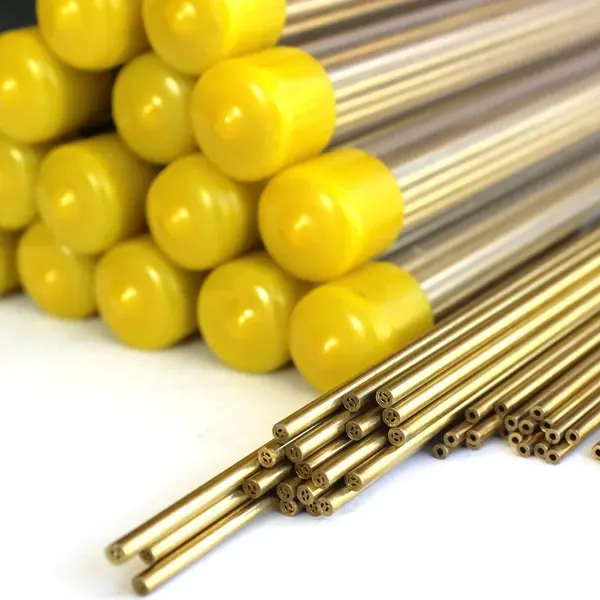

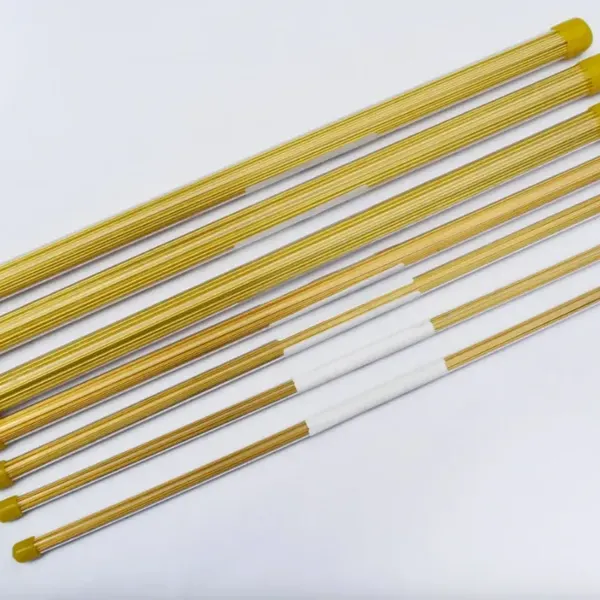

Packing Protection
EDM electrode tubes are packed to reduce bending, surface damage, and contamination during international transportation.
What materials are available for EDM electrode tubes?
We can supply copper and brass EDM electrode tubes. The suitable material depends on the workpiece, drilling requirement, machine type, and cost preference.

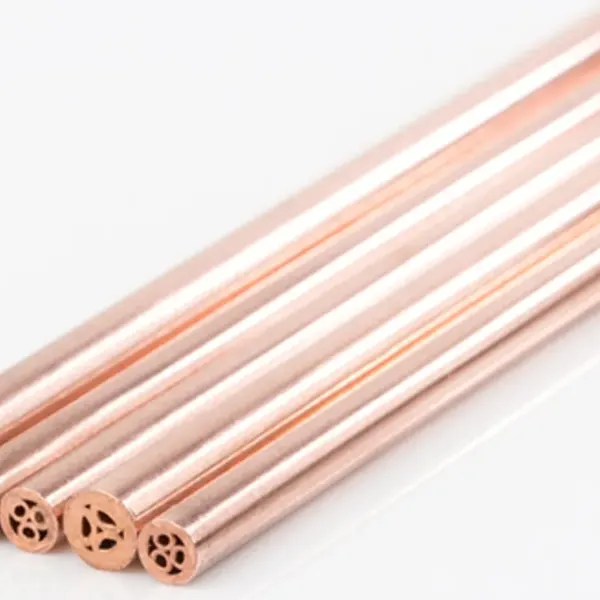

Do you offer single-hole and multi-channel electrode tubes?
Yes. Single-hole and multi-channel EDM electrode tubes can be supplied according to the required flushing performance, hole depth, and machining condition.
What sizes are available?
Common EDM electrode tube sizes range from OD 0.1mm to 6.0mm, with standard and custom lengths available.
Can you customize EDM electrode tubes?
Yes. Custom OD, length, channel type, material, and packing can be discussed according to your drawing or application requirement.
Need EDM electrode tubes for your drilling application?
Send us your material, OD, tube type, length, and quantity. Drawings are also welcome.
